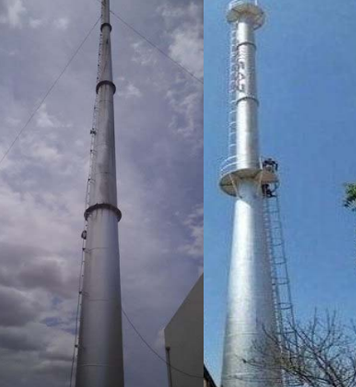

Chimney
- 1. Height of Chimney Chimney is 30 meter.
- 2. Base dia. of Chimney is 100/1000/1200 mm.
- 3. Top dia. of Chimney is 324 mm
- 4. 16mm Dia. Half Thread High Tension
Nut/Bolts with one spring washer and two
plain washers.
- 5. Foundation Bolts/Nuts 25mm Dia. X
1500mm Long
- 6. Steel Core Wire Rope 10mm Dia.
- 7. Type:- self supported type with suitable
earthing, strip, aviation light, lightening
arrestor, ladder with platform, plates
- 8. Material use M.S sheet

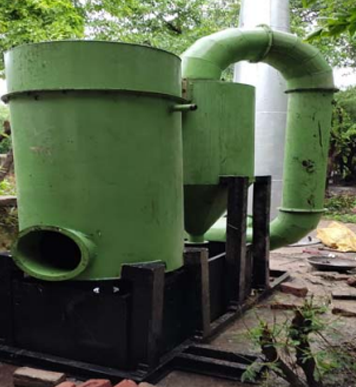

Wet Scrubber
- 1. Condenses the smoke through high-pressure cold air so the
heavy ash particles gets settle down in the chamber and gases
Specification:
heavy ash particles gets settle down in the chamber and gases
pass through second stage.
- 2. Washes the smoke through high pressure water sprinkled
over it and goes to third stage.
- 3. Excess carbon particles mix with water and hot gases
released through chimney
Specification:-
- Material of construction : S.S. AISI - 304
- Position of water spray : from top of Furnace
- Water circuit : closed.
- Efficiency : 95-98%
- Nozzle : specially designed Brass made nozzle.
- Concentration of particles: 150 mg/Ng (nominal
cu. meter.) in exhaust air.
- Fume discharge : 3000 cu.m. per hour.
- Rating of re-circulation : 3.0 H.P. pump
